1W WisMesh Booster Solar Node – Meshtastic / MeshCore

A field-ready, solar-powered Meshtastic or MeshCore node built for reliable long-range, off-grid operation.

This complete node combines the 1W WisMesh Booster, dual solar charging, environmental sensing, and a rugged ASA enclosure in one assembled system. It is designed for permanent or temporary deployment on rooftops, towers, remote properties, and backup communication networks.

Before You Order

• Firmware: Available pre-flashed with Meshtastic or MeshCore. After ordering, email comeonmacgyver@gmail.com to confirm your preferred firmware and any custom configuration.
• Batteries: Three 18650 cells are required and are not included.
• Mounting: Pole or tower mounting hardware is not included.
• Processing: Orders are typically processed in 2–5 business days. Custom configurations may require additional time.
• Frequency: This model uses a 915 MHz antenna. Confirm that your planned configuration and operation comply with local radio regulations.

What’s Included

• 1W WisMesh Booster for strong Meshtastic or MeshCore performance
• Dual solar panels on a custom 30° ASA-printed bracket
• Waveshare Solar Power Manager with MPPT charging and battery protection
• Three-cell 18650 battery system (cells not included)
• RAK1906 environmental sensor for temperature, humidity, barometric pressure, and air-quality readings
• 915 MHz 5.8 dBi fiberglass antenna and 2.4 GHz BLE antenna
• External USB-C access for charging and firmware updates
• Power switch, breather valve, custom internal mounts, and sealed ASA enclosure

Built for Real Deployments

• Solar, battery, and USB-C power paths provide practical redundancy
• ASA-printed parts resist UV exposure, heat, and outdoor weather
• External controls and USB-C ports reduce the need to open the enclosure
• Suitable for off-grid networks, preparedness, field projects, and mesh expansion

Field-Tested Performance

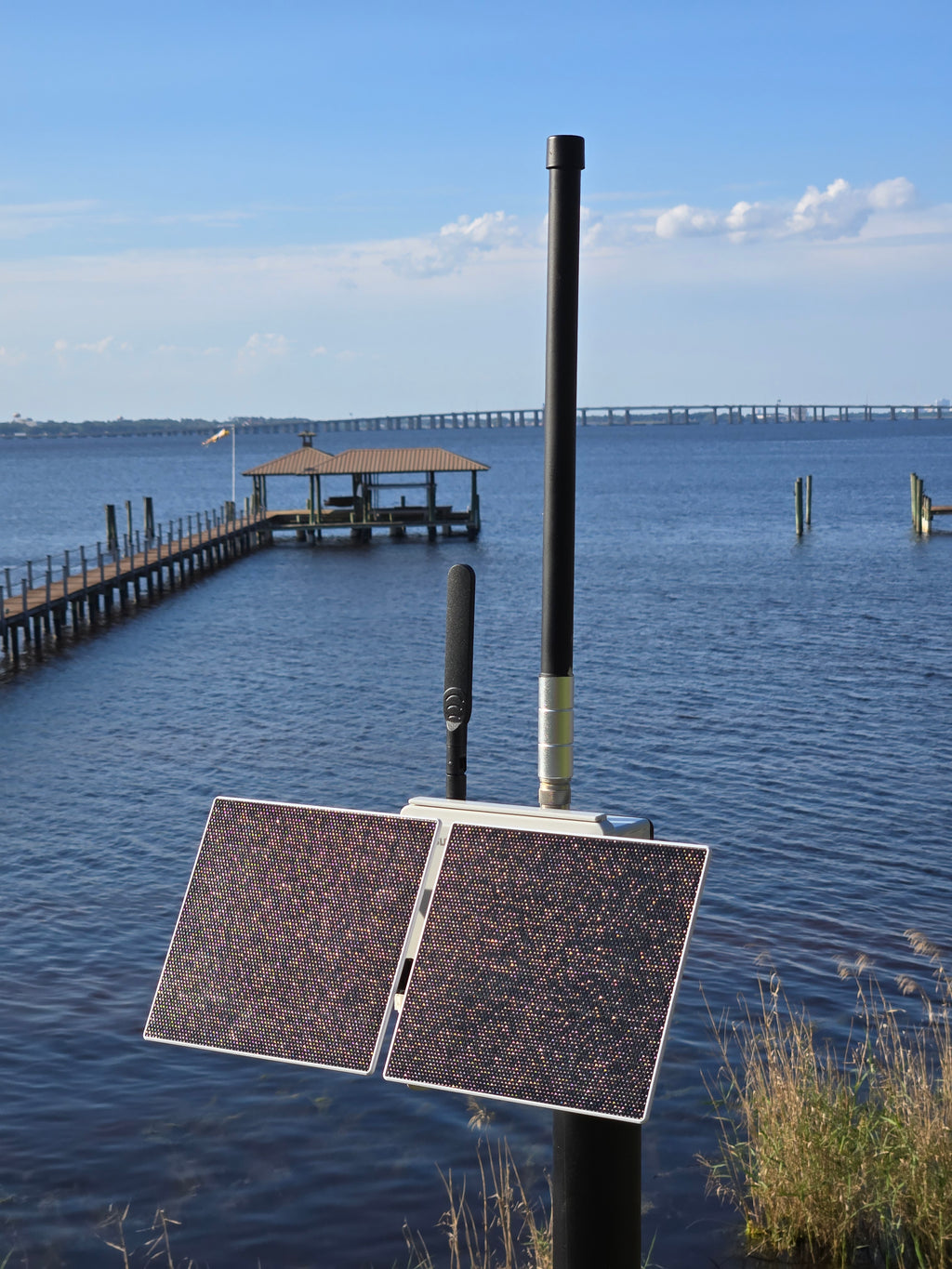

A customer deploying this node in Florida reported an 11-mile line of sight and a 4–5 dB improvement at the remote router. Read the customer story.

Build It Your Way

Want to assemble your own system? See the complete DIY guide and parts list.

Need a different panel angle, mounting option, or hardware configuration? Contact ComeOnMacGyver for a custom build.

Veteran built. Field tested. Proven in real-world deployments.
